007 Constants Design

how to use the Constants design and view panel of ApiHug Api design Copilot.

Go through the constants design panel of ApiHug Api design Copilot

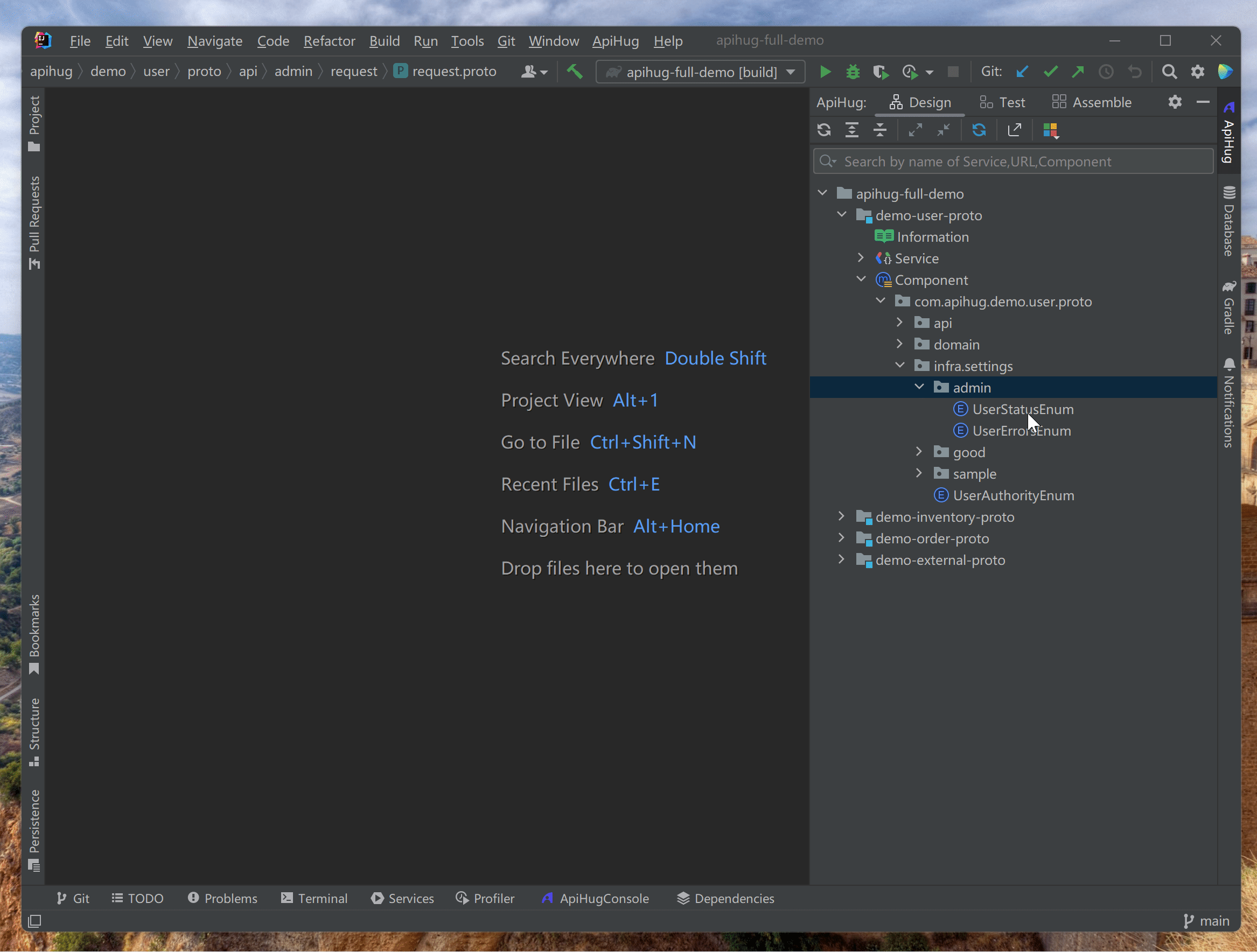

Constant(Enum) design panel
Source code route

Proto Sample

Please refer: apihug-full-demo admin/constant.proto

Protobuf

enum  UserStatusEnum {

  option (hope.swagger.enm) = {
    description: "User management status"
  };

  NORMAL = 0 [(hope.constant.field) = {code: 1,message: "normal", message2: "user normal status"}];
  BLOCKED = 1 [(hope.constant.field) = {code: 2,message: "blocked", message2: "user blocked"}];

}

Java Sample

Please refer: apihug-full-demo UserStatusEnum.java

Java

@Generated("H.O.P.E. Infra Team")
@ProtoFrom(
        value = "com/apihug/demo/user/proto/infra/settings/admin/constant.proto",
        entity = "UserStatusEnum",
        kind = Kind.ENUM
)
public enum UserStatusEnum implements Enumeration<UserStatusEnum> {
    NA(-1, "Default Placeholder Should NEVER be used", "默认占位枚举请勿使用"),
    NORMAL(1, "normal", "user normal status"),
    BLOCKED(2, "blocked", "user blocked");
}
