ApiHug Lint Report

Updated 2024-08-28

​LLMOP

LLM Oriented Programming (LLMOP) represents a paradigm shift in how we conceive and design APIs.

This approach aims to create APIs that are not only functional for applications but are also comprehensible to both humans and large language models (LLMs):

1. Readable APIs: LLMOP ensures APIs are easy to understand with clear naming and documentation, aiding developer onboarding and team efficiency.
2. OpenAPI Integration: LLMOP aligns with OpenAPI for automated API generation and validation, ensuring standardized documentation and tools.
3. User-Centric Design: LLMOP focuses on user needs and business goals for APIs that are both technically sound and user-friendly.
4. Interactive APIs: LLMOP enables real-time feedback within APIs, boosting developer productivity through LLM-assisted interactions.
5. Multimodal Support: LLMOP designs APIs for diverse inputs, including text, voice, and visuals, broadening accessibility and usability.

In summary, LLMOP transforms API development by making it more inclusive for both humans and machines.

By prioritizing readability, leveraging standards like OpenAPI, focusing on thoughtful design, enhancing interactivity, and supporting multimodal interactions,

we can create APIs that are not only powerful but also intuitive and easy to use.

This approach paves the way for a future where APIs are integral to both software applications and human understanding.

​Summary

With the rise of large language models (LLMs), we face new opportunities and challenges in integrating existing APIs and data.

To navigate this integration, we propose two strategies:

1. Greenfield Approach: Rebuild from scratch, suitable for independent businesses despite high risk.
2. Bridging and Adapting: Gradually incorporate existing assets with adapters, allowing for new ideas while ensuring continuity.

In API development, adopting a top-down strategy is crucial. Key practices include:

1. Standards Enforcement: Implement a comprehensive style guide.
2. Lint Compliance Checks: Use lint tools to correct style issues.
3. CI Pipeline Integration: Automate compliance checks in the CI process.
4. Developer Education: Emphasize the value of style guides and linting.

These methods ensure API integrity and foster a disciplined environment, resulting in robust, scalable APIs.

​ApiHug

After SDK 1.0.8-RELEASE, we introduced a simple Lint tool that uses a few basic configuration rules to check your API design standards (more rules can be added in the future).

In terms of API design standards, the industry has Stoplight Style and the open-source Spectral tool to help companies design and refine their API design guidelines. These standards cover aspects such as URL design and naming conventions (for example, using snake_case versus camelCase). Since ApiHug’s Swagger documentation is generated through DSL compilation, this part is relatively easy to manage.

So, ApiHug’s control over API design is relatively straightforward:

1. Descriptions are in place, including API descriptions, field descriptions, and constant descriptions, which can limit the richness of expression (currently, it is not possible to determine whether the expression is adequate—some may be written haphazardly to meet a word count).
2. RAFT RAFT contains a few-shot example of API descriptions (questions) such as:

{
  "api_name": "Gmail API - Users.getProfile",
  "api_call": "service.users().getProfile(userId='me').execute()",
  "api_version": "1.0",
  "api_arguments": {
    "userId": "The user's email address. The special value 'me' can be used to indicate the authenticated user."
  },
  "functionality": "Gets the current user's Gmail profile.",
  "env_requirements": [
    "google-auth",
    "google-auth-oauthlib",
    "google-auth-httplib2",
    "google-api-python-client"
  ],
  "example_code": "from googleapiclient.discovery import build \n from oauth2client import file, client, tools \n store = file.Storage('token.json') \n creds = store.get() \n service = build('gmail', 'v1', credentials=creds) \n results = service.users().getProfile(userId='me').execute()",
  "meta_data": {
    "description": "The Users.getProfile method of Gmail API allows for retrieving basic profile information of a user, such as the email address and account ID.",
    "documentation_link": "https://developers.google.com/gmail/api/reference/rest/v1/users/getProfile"
  },
  "questions": [
    "How can I fetch my Gmail account's email address?",
    "How can I obtain the total messages in my gmail inbox."
  ]
}

Of course, there is still a long way to go before we can seamlessly integrate with the future and the world of Large Language Models (LLMs). For now, we are laying a solid foundation to prepare for future connectivity.

​Configuration

upgrade steps:

1. SDK Version: {your_project}/gradle/libs.versions.toml upgrade apihug = "xxx" to latest 1.0.8-RELEASE+ refer apihug-demo/libs.versions.toml
2. lint Configuration: .apihuglint.properties sample from: apihug-demo-proto

After a successful compilation of your proto module, whether through build or an independent wire,

you will find two additional files in the build directory of your proto module at {PROTO_MODULE}/build/reports/api-lint/:

1. report.html - The generated report in HTML format.
2. report.json - The report in JSON format.

Property	Sample	Comment
violation.limit	20	if violation count exceed, fail the compiler
service.name.length	5	min service name length
service.description.length	5	min service description length
service.api.name.length	5	min api name length
service.api.description.length	20	min api description length
service.api.questions.size	2	min api questions list size
service.api.question.length	5	min api single question length
message.name.length	5	min message name length
message.description.length	5	min message description length
message.field.name.length	3	min message field name length
message.field.description.length	10	min message field description length
entity.name.length	5	min entity name length
entity.description.length	5	min entity description length
entity.column.length	5	min entity column length
entity.column.description.length	5	min entity column description length
entity.table.explicit	false	Table name should set explicitly
entity.column.explicit	false	Table name should set explicitly
eum.name.length	5	min Enum name length
eum.description.length	5	min Enum description length
eum.item.name.length	5	min Enum item name length
eum.item.description.length	5	min Enum item description length

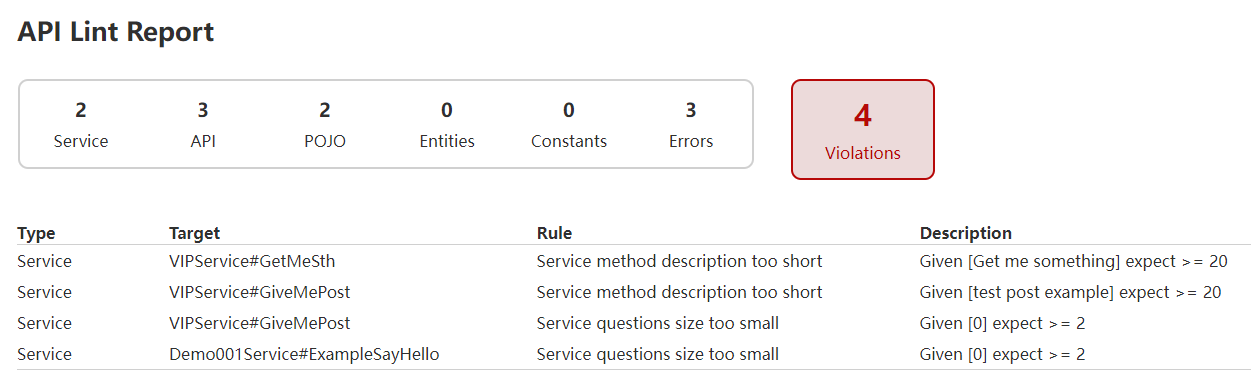

​Report

HTML

Json

[
{
  "proto" : "com/apihug/sample/proto/api/demo001/api.proto",
  "kind" : "Service",
  "target" : "VIPService#GetMeSth",
  "rule" : "Service method description too short",
  "description" : "Given [Get me something] expect >= 20"
}
]

​Refer

1. stoplight-spectral
2. real-world-rulesets
3. gorilla RAFT
